Techmachinery.com
special listings of Used Machinery for either Metal Fabrication jobs, or
composite/resin/plastic molding production.
Plant Production Equipment specials available
for immediate delivery

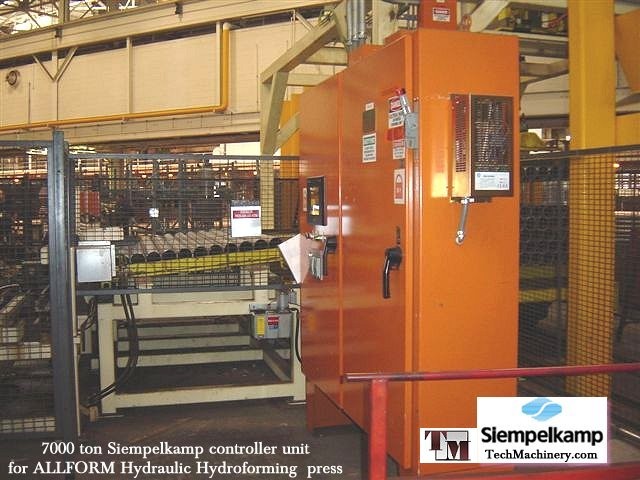

Used 7000 Metric ton Siempelkamp Allform Hydraulic Press for sale
Formerly at Tower Automotive's Hydroform facility in Milwaukee,Wi.
Siempelkamp Specifications:
39" Stroke and 78" Daylite
138.5" 78" Slide Area
175.5" x 84" Die Plate Area
min 500kN Return force
350 mm/s advance speed
40 mm/s preforming
350 mm/s return speedHydroforming via the Siempelkamp
ALLFORM technology enables the economical production of complex and intricate workpiece
shapes. This complexity relates to both longitudinal and cross sections. Typical examples
include chassis parts, branching elements of tubes, and frame and exhaust parts.
 The ALLFORM method: The starting material is
usually a hollow pre-form or a sheet blank, which is pressed into the shape of a forming
tool with a high-pressure fluid. Compared to conventional methods, even hydro-mechanical
and hydrostatic ones, the forming possibilities are significantly increased.
The advantages of ALLFORM PRESSES
- Weight and material savings of 40 to 50 %, in some cases even up to 75 %
- Wall thickness distribution optimized to component requirements
- High work hardening
- Continuous material grain flow for optimum component performance
- More precise dimensional accuracy
- Flow-advantageous component contours and junction geometries
- Elimination of webs for joining operations
- Better usage of limited installation space
|
Call Techmachinery Sales for Pricing and to arrange a inspection of this
Siempelkamp hydraulic Press.
Call (586) 773-8822 |
New offering:

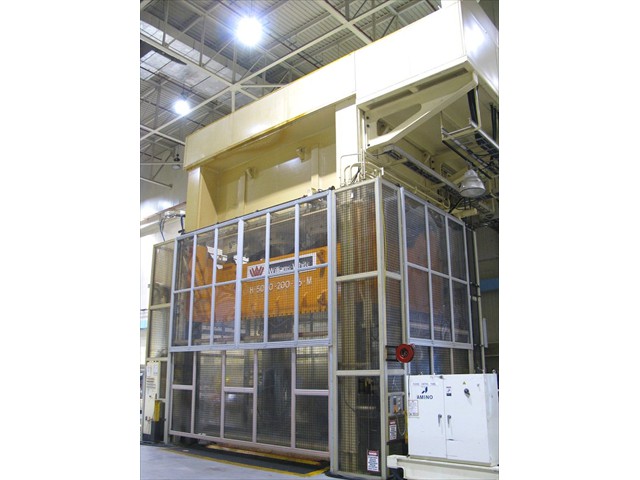

USED 2000 Ton Williams & White Hydraulic Press with 72" Stroke - 100"
Daylite - 120" x 96" Platen and all controllers and safety equipment... call for
liquidation price on this and the Ficep Screw Press shown below.
Zoom  Image |
Rare offering in a used screw press... 2500 Ton
Ficep Screw Press with 400mm diameter Screw capacity. This one is outfitted with
hydraulic upper and lower ejectors and has optional die heater unit. FICEP
SPA designs, manufactures and sells worldwide CNC controlled machines
& systems for the steel construction and forging industries. |
 |
| Model 400 |
FICEP PVM |
| Screw diameter |
mm |
400 |
| Nominal force |
kN |
16000 |
Max. allowed
force continuous
operation |
kN |
32000 |
| Net energy |
Nm |
190000 |
| Weight |
ton |
120 |
|
Used FICEP Medium ton screw press with narrow distance
between the side frames. These tie rods assembled machines are very sturdy and fast
presses, suitable for the forging and coining of mechanical parts of medium-small size,
ferrous and non ferrous material. Call for pricing, further spec details, photos and
accessories included in these 2 used presses.
For immediate sale.. these 2 used hydraulic stamping presses from a
local production plant

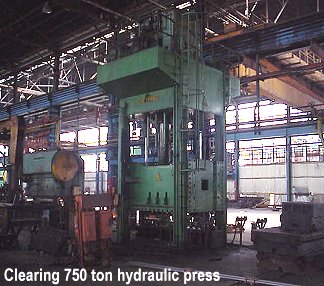

| CLEARING 750 ton hydraulic press SPECS: Clearing Model H-750-120
- Bed size: 10 ft x 7 ft
- 7 ft Daylight and 8 ft Between Housings
- 48 In. Stroke
- CALL Tech Machinery at (586) 773-8822 or e-mail us for pricing
|
|
VERSON 1500 ton hydraulic press at clearence pricing...
VERSON Model HD3-196-196-4T and
Serial Number 23332
Bed: 10'2" L-R and
12'6" F-B Between Housings
60 In. Stroke and 36 In.
Shut Height
Production Working condition
|
|
TM wants your
surplus equipment. We are always looking for surplus equipment to purchase.
Click here to E-Mail us your surplus
equipment list or call and fax us as we are alway purchasing used industrial product plant
equipment for resale to domestic and overseas clients.
Below you'll find some of our current listings of used industrial
plant manufacturing equipment offered for sale through Tech Machinery Inc. Our machinery
locator service acts as your equipment hotline for machinery not listed here. Click
on images to see larger view

*Clearing 1000 ton VertaMold Model H-1000 compression molding press new in 1971. 129"
x 98" Bed area with 96x67" working area between posts. 80" stroke with max
100" daylight. This model has 100HP hydraulic system and hot oil circulating oil
pumps. Updated Allen Bradley PLC2-30 controller and requires pit mounting.

*ERIE 1500 ton compression molding press new in 1977. 3000 psi, 120" x 96
Platen and bed size between posts, 82" stroke, 100" max daylight, with 200 HP
hydraulic system and hot oil pumps. Updated Allen Bradley PLC2-30 controls. Press is pit
mounted
 .
* Verson Model 1500-HD3-108x72-4t compression molding press. 4500psi, 160" x
72" platen and 108" x72" bed size. 80" stroke and 100" max
daylight. Unit has 125HP hydraulic system, hot oil circulating pumps and Allen Bradley
PLC230 controls. (Pit mounted)
* Fanuc Model S-420iW Robot with 6 axis capacity. Model RJ2 CNC
controls and specialty manufactured SMC loading fixture and take-off conveyor system.
* Verson 500 Ton Compression Molding Press new in 1972. This one
has 2860 psi, 66" x 42" platen with 66" x 24" working bed area between
posts. 36" Stroke and 68" daylight with 100HP hydraulic system. Application
Engineering Temperature controller with 2 hot oil pumps and Allen Bradley PLC2-30
controls.

* 1974 Williams and White 1500 ton compressing molding press for sale. 3000 psi,
108" x 84" front to back Platen size with 112" x 44" bed between
posts.82" Stroke and 99" max daylight with 200HP hydraulic system and 2 hot oil
pumps. Also has Allen Bradley PLC2-30 controls on this pit mounted unit.aulic pump
system and Allen Bradley PLC 2-15 controller.
Call (586) 773-8822 for Pricing and additional
equipment for sale
Below you'll find
some newly purchased presses available for immediate delivery.
1. Used
Williams & White 1500 Ton 4 POST HYDRAULIC PRESS

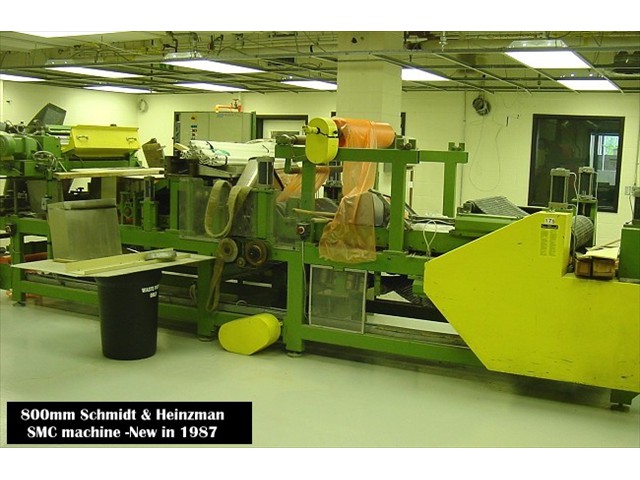

2. 800mm Schmidt & Heinzman used SMC
Machine -new in 1987
3. Finn & Fram 48" SMC machine with complete in-line mixer and
other options.
4. Used- Erie 1500 and 600
ton Hydraulic compression molding presses
5. 1200 Ton Press - Battenfield
Hydraulic Compression Molding 4 Post Press

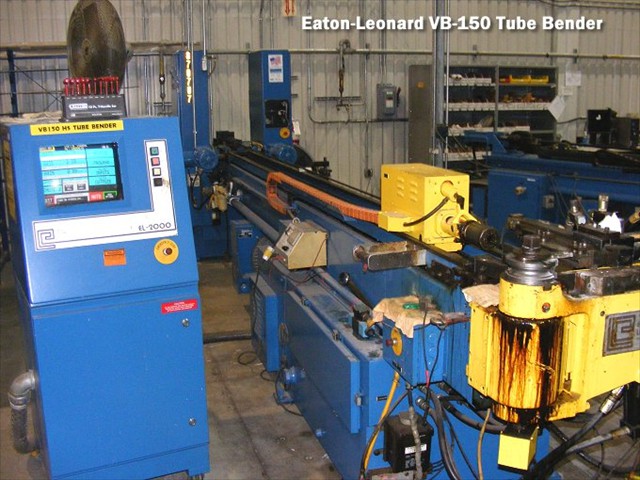

6. 1ea. USED -VB150 Eaton-Leonard
1.5" Capacity and VB-300 3" capacity CNC controlled Tube Benders for sale at
liquidatiuon pricing.
For Sale Watson-Stillman 1000ton
down-acting Hydraulic Press

Bed & Ram area: 160" right to left
x 96" front to back....Tee Slotted Bed & Ram..Stroke:= 60" and
72" daylight......Two 150 hp motors......press updated in 1996 with new
controls, seals, light curtains and any worn or damaged parts replaced. Great condition
and can be seen under power in plant. Call for pricing and inspection appointment.
1980 Dieffenbacker Type PHP 2000 ton
Hydraulic Press for sale:
max compression force= 2000 tons with Platen clamping surface 100x60" with 56"
lift and 76" daylight. options include Core Pullers and 3 Ejectors and can be shipped
worldwide. |
|
| 1980 Dieffenbacker Type PHP 4000 ton
hydraulic press: Max compression 4000 tons with clamping surface 148x110 inches
Press lift= 103" Daylight= 142". Min installation clearance height= 144".
Press has Grenzback Extraction option, Table Ejector and Core Puller accessory.. |
|

Call Tech Machinery for details and pricing on these
composite compression molding used presses. We also specialize in used Hydraulic and
Mechanical metal stamping presses ready shipment to production plants worldwide.
Thinking About Buying a Used Industrial metal fabrication machine?
Tech Machinery Inc. specializes in mechanical and hydraulic presses of all tonnage for a
variety of industial applications. We also carry plastic and composite moulding production
equipment to go along with the various metal working presses.
Tech Machinery Sales has available for immediate delivery this Erie
Hydraulic 600 Ton Compression Molding Press.
Liquidation Sale on this ERIE Hydraulic 250 to 4000
ton pressline
It's a Buyer's Marketplace in the used plant production equipment
marketplace in the USA. Tech Machinery Sales is your advocate for getting the lowest price
on excess machinery due to bankrupcy or distressed sales of viable production equipment.
The Global economy is being fueled by putting this production machinery back into use in
USA growth areas and worldwide industrial cities. |
