Used Bliss 5000 ton 4 post Hydraulic Press, with all updated controls, for sale
This one is available for immediate delivery.

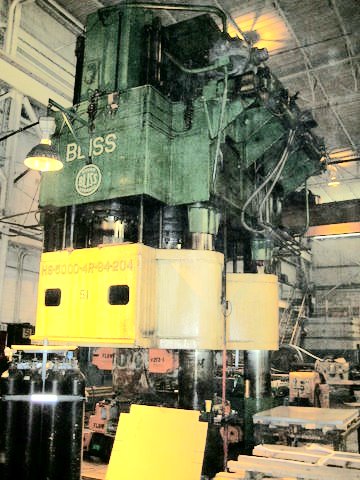

5000 Ton Bliss 4 -Post Hydraulic Press
SPECS : 5000 Ton bliss 4-post  hydraulic type
STROKE 48" ..... Daylight = 132"
Platen = 84" x 204" with Bed size 84" x 100"  Between Posts



Additional Plastic and composite molding systems are available for purchase from Tech Machinery Inc. Please call (586) 773-8822

CONTACT Contact the seller of this Car SELLER

Please fill in below form info and submit only once

Equip Description:
Your Name:
phone number:
City:State: Zip:
or your foreign Country:

Tech Machinery is a Industrial Equipment broker

WE ARE PLEASED TO OFFER THE FOLLOWING 5000 ton WILLIAMS AND WHITE HYDRAULIC 4 POST PRESS WITH ROLLING BOLSTER FOR YOUR IMMEDIATE PURCHASE CONSIDERATION. See specifications below or click here for complete detail page on this barely used Williams & White 4-post hydraulic press..

5000 Ton Williams & White Hydraulic 4-Post Press Model #H-5000-200-96M
Serial #C-4781 installed new 1999


Stroke 72"
Daylight 112" to Rolling Bolster
Stripping Tonnage 200
Die Space 96" x 200"
Operating Speeds:
    Fast Close 700 IPM
    Int. Press (to 1000 ton) 15-150 IPM
    Pressing     3-30 IPM
    Stripping    15-150 IPM
    Fast Open 525 IPM
Water Hydroforming System w/Console controls



Electronic Controls included

Buy/Sell services performed by Tech Machinery Inc.

Tech Machinery focuses on buying and selling of used metalworking presses, shears, stamping plant and plastic molding machinery. It is our only business. We concentrate on, and dedicate our time and resources to satisfy our customer's industrial machinery needs. Most manufacturing companies have no quick method of disposing of their machinery. There is no need to assign this task to one of your employees who is already overloaded with work, and who may not have the information and contacts to receive the best price when selling used machinery. We are here to help manufacturing companies with the disposal of your surplus or obsolete equipment.

Our business is focused both in the USA and from global contacts. Experienced in handling the transfer of machinery equipment from one country to another, as well as from one city or state, to another. We offer knowledge and experience and actively seek to satisfy the needs of customers, whether purchasing or selling used machinery.

TM wants your surplus equipment.  We are always looking for surplus equipment to purchase. Click  here to E-Mail us your surplus equipment.





We now have in stock three rare 5000 ton Hydraulic 4-post presses available for immediate sale. Tech machinery also has 40+ ERIE, HOESCH, Williams and White 4 post hydraulic presses ranging from 400 tons to 2500 tons immediately available from 2 plant liquidation sales. Also see the Clearing and Danly complete presslines and other misc plant production presses for sale below...

  1. 5000 Ton Bliss 4 -Post Hydraulic Press with rolling bolsters

  2. 5000 ton WILLIAMS AND WHITE HYDRAULIC 4 POST PRESS WITH ROLLING BOLSTER

  3. 5000 metric ton Dieffenbacker hydraulic press with rolling bolsters and leveling system

  4. 1600 TON, USI CLEARING PRESSLINE with (5) PRESSES, Robots and de-Stackers

  5. (1) 2500 Ton Used DANLY and (3) 1000 ton PRESSES IN COMPLETE WORKING PRESS LINE for sale

  6. 1000 Ton Williams & White Down Acting Hydraulic Housing Type Press

  7. Used 500 TON WILLIAMS & WHITE HYDRAULIC FRAMING PRESS

  8. 150 TON PHOENIX 4-POST HYDRAULIC COMPRESSION MOLDING PRESS for sale at liquidation price

  9. Used Williams & White 1500 Ton 4 POST HYDRAULIC PRESS

  10.  800mm Schmidt & Heinzman used SMC Machine  -new in 1987

  11. 1200 Ton Press - Battenfield Hydraulic Compression Molding 4 Post Press

  12. Used 2500 ton HPM Hydraulic Press for sale at a wholesale price.

  13. Finn & Fram 48" SMC machine with complete in-line mixer and other options.

Call Tech Machinery at (586) 773-8822 or e-mail us for pricing and complete details on these plant production system bargains.

Tech Machinery is a Industrial Equipment broker

Below you'll find some of our current listings of  used industrial plant manufacturing equipment offered for sale through Tech Machinery Inc. Our machinery locator service acts as your equipment hotline for machinery not listed here. Click on images to see larger view.

* Williams & White 800ton capacity Compression Molding Press (1976) for sale. Three identical presses 2803-psi 125" x 50" Platen size, 95" x 45" Bed area between posts, 60" stroke with 80" max Daylight. 75HP Hydraulic system with hot oil pumps and full PLC relay controls. (pit mounted press)

* 600 ton ELMS 1955 compression Molding Press for sale. Platen 90" x60", Bed area 60" x 40" with 42" stroke and max 54" daylight. 75hp hydraulic pump system a 2 hot oil circulating pumps and relay controls on this pit mounted unit.

*Clearing 1000 ton VertaMold Model H-1000 compression molding press new in 1971. 129" x 98" Bed area with 96x67" working area between posts. 80" stroke with max 100" daylight. This model has 100HP hydraulic system and hot oil circulating oil pumps. Updated Allen Bradley PLC2-30 controller and requires pit mounting.

*ERIE 1500 ton compression molding press new in 1977. 3000 psi, 120" x 96 Platen and bed size between posts, 82" stroke, 100" max daylight, with 200 HP hydraulic system and hot oil pumps. Updated Allen Bradley PLC2-30 controls. Press is pit mounted

* Verson 500 Ton Compression Molding Press new in 1972. This one has 2860 psi, 66" x 42" platen with 66" x 24" working bed area between posts. 36" Stroke and 68" daylight with 100HP hydraulic system. Application Engineering Temperature controller with 2 hot oil pumps and Allen Bradley PLC2-30 controls.

* 1974 Williams and White 1500 ton compressing molding press for sale. 3000 psi, 108" x 84" front to back Platen size with 112" x 44" bed between posts.82" Stroke and 99" max daylight with 200HP hydraulic system and 2 hot oil pumps. Also has Allen Bradley PLC2-30 controls on this pit mounted unit.

Call (586) 773-8822 for Pricing and additional equipment for sale

Tech Machinery Sales has available for immediate delivery this Erie Hydraulic 600 Ton Compression Molding Press.

Phone or write the staff of TechMachinery LLC


TM wants your surplus equipment.  We are always looking for surplus equipment to purchase. Click  here to E-Mail us your surplus equipment list or call and fax us as we are alway purchasing used industrial product plant equipment for resale to domestic and overseas clients.

Used 7000 Metric ton Siempelkamp Allform Hydraulic Press for sale

Formerly at Tower Automotive's Hydroform facility in Milwaukee,Wi.
Siempelkamp Specifications:
39" Stroke and  78" Daylite
138.5" 78" Slide Area
175.5" x 84" Die Plate Area
min 500kN Return force
350 mm/s advance speed
40 mm/s preforming
350 mm/s return speed

Hydroforming via the Siempelkamp ALLFORM technology enables the economical production of complex and intricate workpiece shapes. This complexity relates to both longitudinal and cross sections. Typical examples include chassis parts, branching elements of tubes, and frame and exhaust parts.

 The ALLFORM method: The starting material is usually a hollow pre-form or a sheet blank, which is pressed into the shape of a forming tool with a high-pressure fluid. Compared to conventional methods, even hydro-mechanical and hydrostatic ones, the forming possibilities are significantly increased.

The advantages of ALLFORM PRESSES

  • Weight and material savings of 40 to 50 %, in some cases even up to 75 %
  • Wall thickness distribution optimized to component requirements
  • High work hardening
  • Continuous material grain flow for optimum component performance
  • More precise dimensional accuracy
  • Flow-advantageous component contours and junction geometries
  • Elimination of webs for joining operations
  • Better usage of limited installation space




Call Techmachinery Sales for Pricing and to arrange a inspection of this Siempelkamp hydraulic Press.
