Below you'll find some of our current listings of used industrial
plant manufacturing equipment offered for sale through Tech Machinery Inc. Our machinery
locator service acts as your equipment hotline for machinery not listed here. Click on
images to see larger view
Sheridan Gray 750 ton Hot molding press with cooling tower for
Sheridan Gray model LEHLC-750 new in
1987 with variable tonnage from 20 to 750
Ram Stroke 36" and Ram speed pressing
= 0-15 IPM
Ram speed return from 0 to 20 IPM and
Platen size 72" x 144"
Minimum die size 32" x 32" and
equipped with thermal transfer - oil circulation system
Oil Temperature 600 degree F and has
water circulation system with cooling tower..
600 GPM @ 43.3 PSI with 20 HP drive
Platen and Bolster level via linear
control. Press has 2 fabricated steel platens, one attached to crown
and other to the up-acting bolster.
each platen has 72 heater elements
and labyrinth of passages for even heating and cooling during
operation. Ceramic insulators and 4 heat shields with front capable
of manual raising and lowering for die setting.
Call Tech Machinery Sales for price
on this 750 ton Sheridan/Gray molding press system.
750 ton Pacific used press SPECIFICATIONS:
Stroke: 24 and Open Height: 36 Closed height: 12
Bolster Size: 120LR x 72FB
Windows: 36W x 44H
Speeds: Advanced: 198, 77,23 IPM
Return: 132, 44 IPM
Equipped With: Water Type Heat Exchanger
250 Ton Die Cushion @ 2150 PSI
Knock Out Slots and 75 HP Motor
Approximate Dimensions: 72FB x 158LR x 190 High (Above
48 Below Floor Line
Approximate Weight: 152,000#...
click here for more details on this
Pacific 750 ton straight side Hydr Press

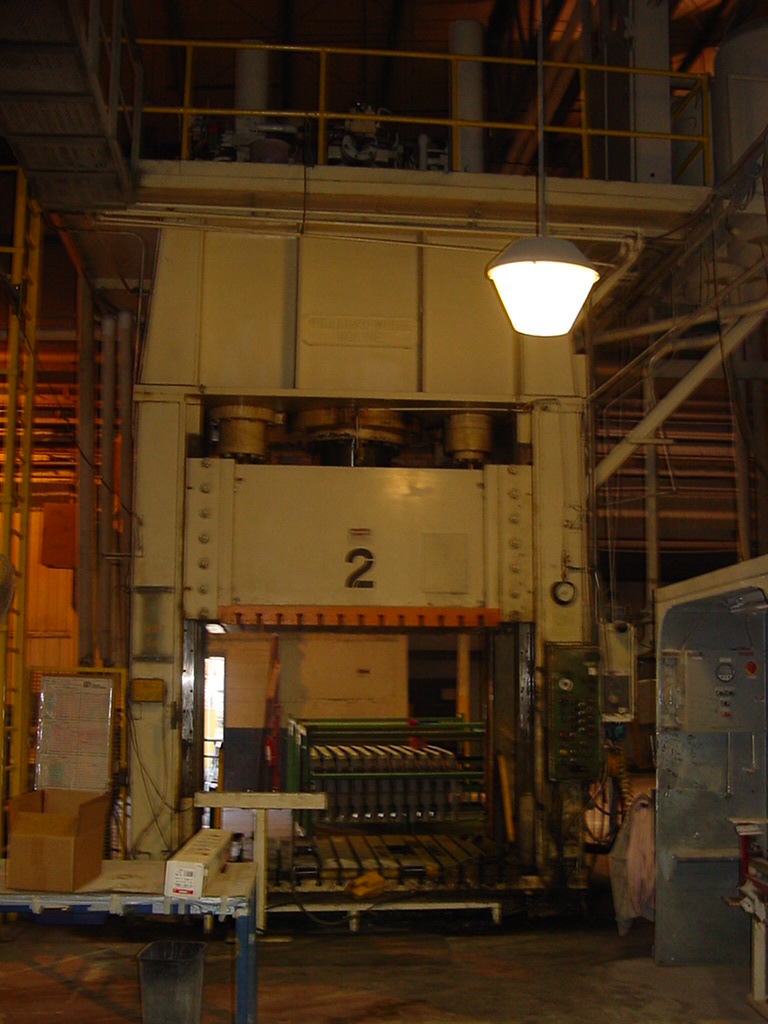

For immediate sale.. these 2 used hydraulic stamping
presses from a local production plant
VERSON 1500 ton hydraulic press at clearance pricing...
Tech Machinery Sales has this used 650 ton Pacific 4 post hydraulic Press for sale at a
: 650 Ton Pacific 4-Post Hydraulic Press for sale. New in
1994.... Model 650 CX 12/126
Bed & Ram Size:
144" rl x 126"fb
86" .Daylight: 110".........
Adjustable Tonnage via PLC operator interface.
Max open above Bolster: 114" and Min open is 28" above bolster
Equipped with Dual Rolling
Bolsters front to back 4" thick Tee Slotted Bolster
Top is 11" above floor
Base Sets 39" below floor
level and has Max Height above floor = 275 3/8" or 22' 9"
withc Approx Machine weight 300,000 lbs. Condition is very Good and ready for plant
Click images to enlarge
|500 ton FABRIWELD hydraulic press new in
2004. Used in R&D test lab so performs like new.
- A-B panel-view 600 controller
- 48" DL and light curtains
- 36" stroke and 80x120" between posts.
80x107 platen area and 145x80 overall bed size.
USED HYDRAULIC PRESSES

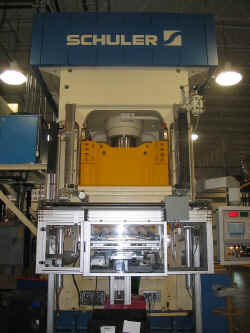

200 ton Schuler testing
press with Sterlco die heater and model SMCA-75 chiller. Model
M2B9026-J1 with 47" daylight and 36x36" bed size. Light curtains.
Used Wisconsin drawer type 500° F
electric oven and L&L brand infra-red oven with 3 zones and
24x64" typical heat zone size. Call for pricing on all these new
press and industrial heat treat oven listings...
FabriWeld brand 50 ton hydraulic testing press installed new in
2004. Equipped with A-B panel-view 300 controller and has 36"
stroke, 40" DL and has 84x60" between posts.
Used 50 ton R&D testing hydraulic Fabriweld press with Sterlco die
heater and chiller.
* Williams & White 800ton capacity Compression Molding Press (1976) for sale. Three
identical presses 2803-psi 125" x 50" Platen size, 95" x 45" Bed area
between posts, 60" stroke with 80" max Daylight. 75HP Hydraulic system with hot
oil pumps and full PLC relay controls. (pit mounted press)
*ERIE 1500 ton compression molding press new in 1977. 3000 psi,
120" x 96 Platen and bed size between posts, 82" stroke, 100" max daylight,
with 200 HP hydraulic system and hot oil pumps. Updated Allen Bradley PLC2-30 controls.
Press is pit mounted
Call Tech Machinery for details and pricing on these composite
compression molding used presses. We also specialize in used Hydraulic and Mechanical
metal stamping presses ready shipment to production plants worldwide.
* Verson 500 Ton Compression Molding Press new in 1972. This one
has 2860 psi, 66" x 42" platen with 66" x 24" working bed area between
posts. 36" Stroke and 68" daylight with 100HP hydraulic system. Application
Engineering Temperature controller with 2 hot oil pumps and Allen Bradley PLC2-30
NEW offer: 1ea. USED
-VB150 Eaton-Leonard 1.5" Capacity and VB-300 3"
capacity CNC controlled Tube Benders for sale at liquidatiuon pricing.
Eaton-Leonard CNC controlled Tube Bending machines
Call (586) 773-8822 for Pricing and additional
equipment for sale
Below you'll find some
newly purchased presses available for immediate delivery.
Williams & White 1500 Ton 4 POST HYDRAULIC PRESS
2. 800mm Schmidt & Heinzman used SMC
Machine -new in 1987
3. Finn & Fram 48" SMC machine with complete in-line mixer and
4. Used- Erie 1500 and 600
ton Hydraulic compression molding presses

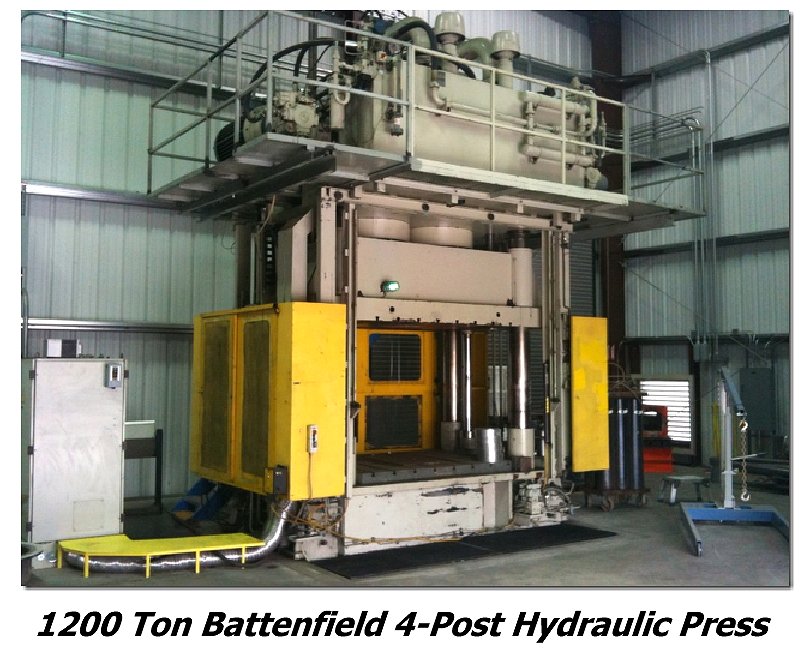

5. 1200 Ton Press - Battenfield
Hydraulic Compression Molding 4 Post Press

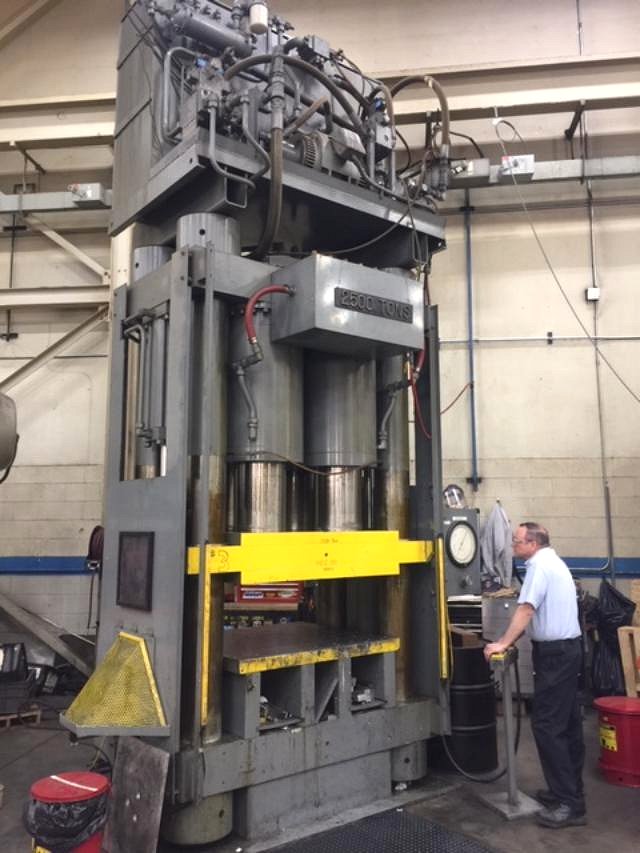

6. Used 2500 ton HPM Hydraulic
Press for sale at a wholesale price.
Additional listings: Newer model Eagle Model EPT-60
2-1/4" capacity and Adaptive Motion used CNC Tube Benders for sale.
10'x1/4" Guilfil Hydraulic Shear, 8' 70 Ton 2-axis CNC Guilfil Brake, 10' 240 Ton
8-axis LVD CNC controlled Brake and 10' x1/2" LVD Hydraulic Shear also available.
Press Rebuilding Repair and Relocation
Services have been added to our service offerings as we recondition
hydraulic and mechanical presses for buyers.
Hydraulic Presses and Equipment rebuilding Services include:
- Refurbish and retrofit all types of hydraulic presses
- Complete rebuilds from hydraulics to electrical control
- Expert analysis of existing press condition and upgrade
Tech Machinery offers complete rigging and press relocation
services to anywhere in North America as a value add service to buyers.
- Press Dismantling, re-rigging and shipping prep services
- Trucking by bonded carrier to any USA destination
- Installation services including rigging, electrical and
New at Techmachinery is
our e-mail discussion group
Opt-in to receive our most current used machinery for sale listings!
You'll also be able to post your own machinery for-sale listings to the
groups membership or send a "Want to Buy" message to members.
48" Finn & Fram SMC machine with complete in-line
mixer and other options.
Tech Machinery Sales has available for immediate delivery this Erie
Hydraulic 600 Ton Compression Molding Press.
Buy/Sell services performed by Tech Machinery
Tech Machinery focuses on buying and selling of used
metalworking presses, shears, stamping plant and plastic molding machinery. It is our only
business. We concentrate on, and dedicate our time and resources to satisfy our customer's
industrial machinery needs. Most manufacturing companies have no quick method of disposing
of their machinery. There is no need to assign this task to one of your employees who is
already overloaded with work, and who may not have the information and contacts to receive
the best price when selling used machinery. We are here to help manufacturing companies
with the disposal of your surplus or obsolete equipment.
We have access to thousands of machines. Because of our
computerized inventory and communication system, daily contact with manufacturing plants
and process facilities, and Internet hook-up; we are better able to sell your surplus
machinery and to locate machines that you need. We are always looking for quality surplus
machinery equipment. Presses, grinders, thread rollers, plant production lines to name a
few. Everything from a single machine to an entire plant are saught after by our used
|Erie Hydraulic 1500Ton
Compression Molding Press
S/N: 21-5522 Year: 1985
Platen: 128" x 100"
Working Pressure: 2800 PSI
Advance: 5 to 100 IPM
Pressing: 3 to 25 IPM
Slow Return: 1 to 10 IPM
Return: 700 IPM
Top Mounted Hydraulics
Free Standing Controls
If the equipment you need isn't listed here, we ask that
you contact us so we can find it for you.
