Current listings of Used Hydraulic and
other type stamping presses for sale by Tech Machinery Sales

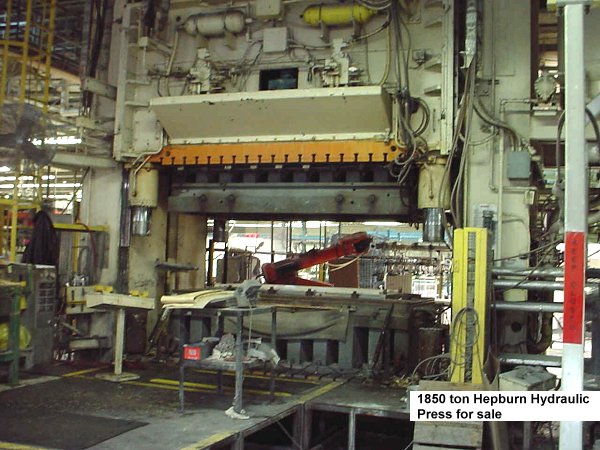

1850
ton Hepburn Hydraulic Press 72" Stroke, 96" Daylite,960"x120" Bed
with**AUTO LEVELING FEATURE** Great price on this Hepburn press.
Great Buy
on this
200 Ton PH 4-Post down acting Hydraulic
Press equipped with 25 Ton Cushions and
press has 36" x 50" Bed, 32"
Stroke with 40" DayLight and A/B SLC
Controls. Great Press... Great Price!
Call
Tech
Machinery Sales at (586)
773-8822 for price and further press details
on this used 200 ton PH hydraulic press and the 2500 Ton PST shown below .
 |
 |
Great 2500 Ton PST Hydraulic Press for sale
at liquidation price.
Call the above phone number
and get further press details and great sale
price.
Installed New in 1988. This
Floor Standing Press was Completely Rebuilt
in 2012. Press has a 24” Stroke and 51”
Daylight with a 44” x 51” Bed Size. Call for
price & shipping & rigging quote |
 |
Below you'll find some of our current listings of used industrial
plant manufacturing equipment offered for sale through Tech Machinery Inc. Our machinery
locator service acts as your equipment hotline for machinery not listed here. Click on
images to see larger view

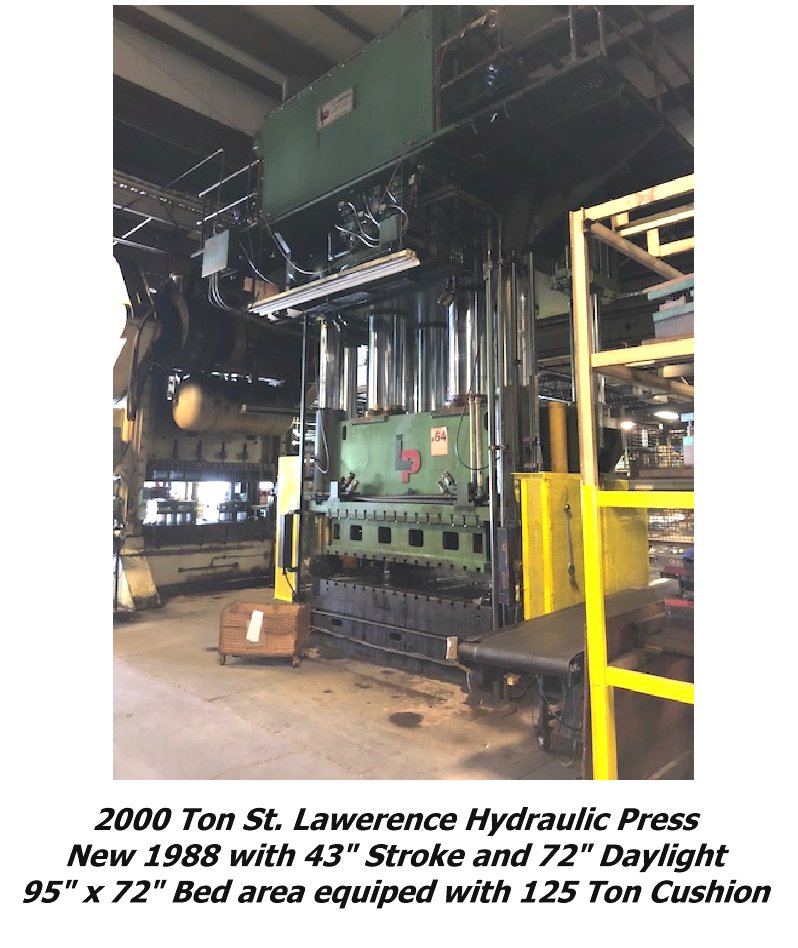

2000 Ton St. Lawrence Hydraulic Press for sale
New 1988 with 43" Stroke and 72" Daylight
95" x 72" Bed area equipped with 125 Ton Cushions
500 Ton Hamilton Hydraulic Press priced for immediate
Sale
Installed
New in 1995
48" Stroke and 66" DayLight
18" Shut Height
Die Bed Size 72" x 142"
Must
see compression molding hydraulic presses for sale at below links....
500 ton FABRIWELD hydraulic press new in
2004. Used in R&D test lab so performs like new.
- A-B panel-view 600 controller
- 48" DL and light curtains
- 36" stroke and 80x120" between posts.
80x107 platen area and 145x80 overall bed size.
 |
 |
BUYING ASSISTANCE
– USED HYDRAULIC PRESSES

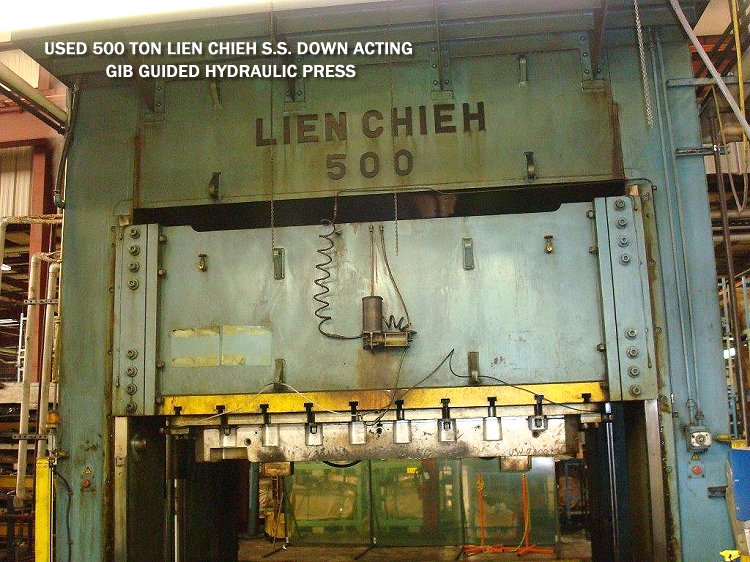

1 – USED 500 TON
LIEN CHIEH S.S. DOWN ACTING GIB GUIDED HYDRAULIC
PRESS for sale
STOCK NO. 14444
and S/N KHM04046
Mfg. 1998 and
Installed new 11/98
500 Ton Rating
86” x 110” Bed And Ram
60” Stroke and 70” Daylight
Dual 14” Diameter Cylindrical Rods
T-Slotted Ram Face And Bolster
Rolling Bolster, 98” Travel
100 Ton Stripping Capacity
25 Ton Max. Die Weight
24 Ton Return Capacity
43” x 84” Windows
100 HP Hydraulic Pump Motor 440/3/60
Rexroth Pumps And Valves
Speeds: 720 IPM Advance Max.
60 IPM Pressing Max.
720 IPM Return Max.
Good Condition
– As Taken From
Service
FOB –
Cincinnati, Ohio .... Call Tech Machinery
(586)
773-8822
for price and
inspections or quotes for shipping.
|
Floor Space: 140” x
140” x 250” Ht. From Floor
and approx Weight: 70 Tons.
Sizes And Weights Of
Press Parts:
Sliding Bolster – 14,000 Lbs., 7’4” x 9’4” x 21” Ht.
Ram – 32,000 Lbs., 8’ x 10’ x 10’ Ht.
Base – 20,000 Lbs., 8’ x 10’ x 40’ Ht.
(2) Side Frames – 12,000 Lbs. Each, 18’ x 8’ x 2’ Ht.
Each
Crown – 40,000 Lbs., 9’6” x 8’ x 8’ Ht.
Hydraulic System – 3,000 Lbs., 4’8” x 8’ x 7’5” Ht.
  |
500 Ton Clearing Up-Acting 4 Post
Hydraulic press for sale
Used 500 Ton Clearing Up-Acting 4-Post Hydraulic
Press specs 24" Stroke with 48" Daylight and 48" x
96" Platen

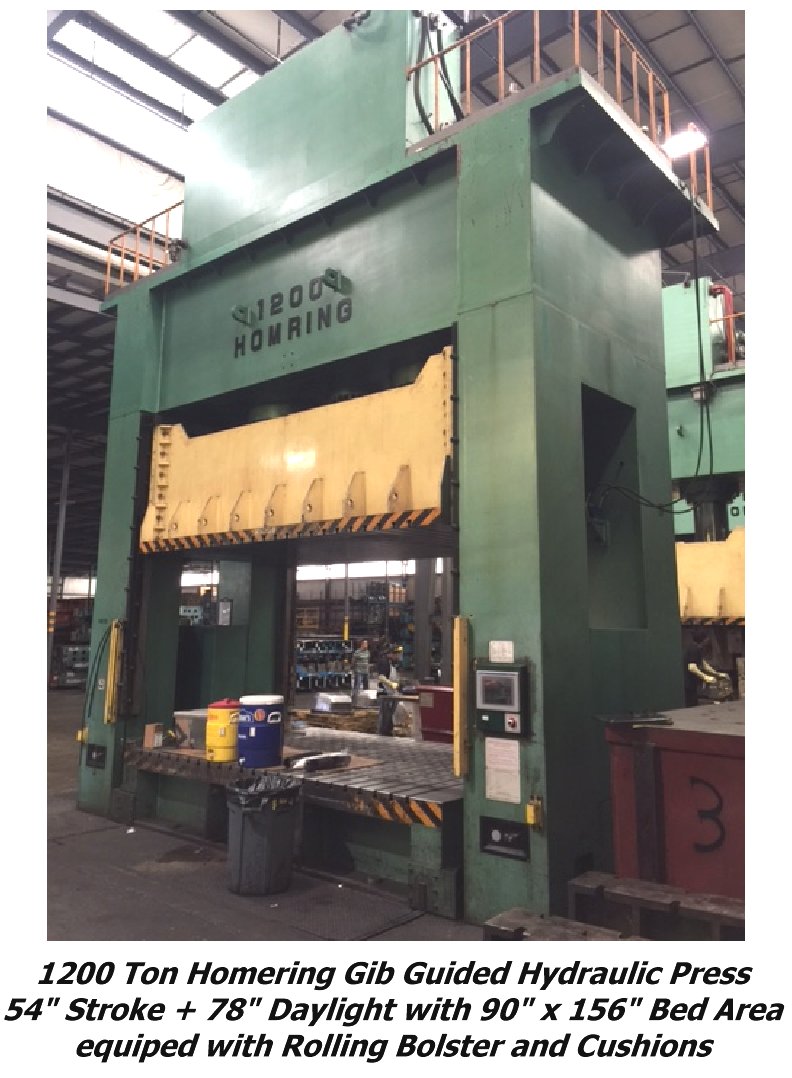

USED 1200 Ton Homering Gib Guided
Hydraulic Press with 54" Stroke and 78" Daylight
press has 90" x 156" Bed Area Rolling Bolster and
equipped with Cushions
200 ton Schuler testing
press with Sterlco die heater and model SMCA-75 chiller. Model
M2B9026-J1 with 47" daylight and 36x36" bed size. Light
curtains.
Used Wisconsin drawer type 500°
F electric oven and L&L brand infra-red oven with 3 zones
and 24x64" typical heat zone size. Call for pricing on all these
new press and industrial heat treat oven listings...
FabriWeld brand 50 ton hydraulic testing press installed new
in 2004. Equipped with A-B panel-view 300 controller and has 36"
stroke, 40" DL and has 84x60" between posts.
Used 50 ton R&D testing hydraulic Fabriweld press with Sterlco
die heater and chiller.
 23 Hydraulic Compression Molding Presses from
500 ton to 2500 ton for sale at liquidation prices. (Shelbyville Indiana
auto parts plant closing sale)
Grabil Indiana Compression Molding plant liquidation sale on ERIE,
French Oil, Hepburne and Williams & White major brand presses ranging from 400 to 4450
ton capacities. We also have some HPM and Toyo Plastar brand injection molding presses
for immediate sale in this Grabil In. Plant Liquidation sale.
SPECIFICATIONS:

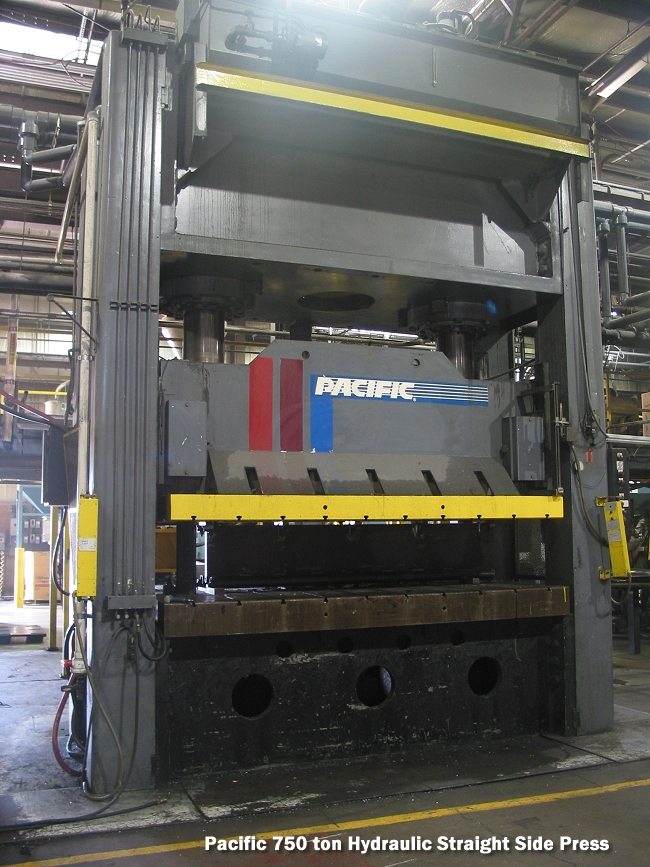

750 ton Pacific used press SPECIFICATIONS:
Stroke: 24” and Open Height: 36” Closed height: 12”
Bolster Size: 120”LR x 72”FB
Windows: 36”W x 44”H
Speeds: Advanced: 198, 77,23 IPM
Return: 132, 44 IPM
Equipped With: Water Type Heat Exchanger
250 Ton Die Cushion @ 2150 PSI
Knock Out Slots and 75 HP Motor
480/3/60 Electrics
Approximate Dimensions: 72”FB x 158”LR x 190” High (Above
Floor Line)
48” Below Floor Line
Approximate Weight: 152,000#...
click here for more details on this
Pacific 750 ton straight side Hydr Press
Formerly at Tower Automotive's Hydroform facility in Milwaukee,Wi.
Siempelkamp Specifications:
39" Stroke and 78" Daylite
138.5" 78" Slide Area
175.5" x 84" Die Plate Area
min 500kN Return force
350 mm/s advance speed
40 mm/s preforming
350 mm/s return speedHydroforming via the Siempelkamp
ALLFORM technology enables the economical production of complex and intricate workpiece
shapes. This complexity relates to both longitudinal and cross sections. Typical examples
include chassis parts, branching elements of tubes, and frame and exhaust parts.
 The ALLFORM method: The starting material is
usually a hollow pre-form or a sheet blank, which is pressed into the shape of a forming
tool with a high-pressure fluid. Compared to conventional methods, even hydro-mechanical
and hydrostatic ones, the forming possibilities are significantly increased.
The advantages of ALLFORM PRESSES
- Weight and material savings of 40 to 50 %, in some cases even up to 75 %
- Wall thickness distribution optimized to component requirements
- High work hardening
- Continuous material grain flow for optimum component performance
- More precise dimensional accuracy
- Flow-advantageous component contours and junction geometries
- Elimination of webs for joining operations
- Better usage of limited installation space
|
Call Techmachinery Sales for Pricing and to arrange a inspection of this
Siempelkamp hydraulic Press.
Call (586) 773-8822 |
1980 Dieffenbacker Type PHP 2000 ton
Hydraulic Press for sale:
max compression force= 2000 tons with Platen clamping surface 100x60" with 56"
lift and 76" daylight. options include Core Pullers and 3 Ejectors and can be shipped
worldwide. |
|
| 1980 Dieffenbacker Type PHP 4000 ton
hydraulic press: Max compression 4000 tons with clamping surface 148x110 inches
Press lift= 103" Daylight= 142". Min installation clearance height= 144".
Press has Grenzback Extraction option, Table Ejector and Core Puller accessory.. |
|
For immediate sale one 1600 Ton Schuller
Hydraulic Press installed new in 1996 with 130x98" bed size and 43"
stroke. This model HPD-S1600 Schuller Press is located in Mid-west USA location and can be
shipped worldwide.
Sheridan Gray 750 ton Hot molding press with cooling tower for
immediate sale
-
Sheridan Gray model LEHLC-750 new in
1987 with variable tonnage from 20 to 750
-
Ram Stroke 36" and Ram speed pressing
= 0-15 IPM
-
Ram speed return from 0 to 20 IPM and
Platen size 72" x 144"
-
Minimum die size 32" x 32" and
equipped with thermal transfer - oil circulation system
-
Oil Temperature 600 degree F and has
water circulation system with cooling tower..
-
600 GPM @ 43.3 PSI with 20 HP drive
motor.
-
Platen and Bolster level via linear
control. Press has 2 fabricated steel platens, one attached to crown
and other to the up-acting bolster.
-
each platen has 72 heater elements
and labyrinth of passages for even heating and cooling during
operation. Ceramic insulators and 4 heat shields with front capable
of manual raising and lowering for die setting.
-
Call Tech Machinery Sales for price
on this 750 ton Sheridan/Gray molding press system.
Call Tech Machinery at
(586) 773-8822 or e-mail us for pricing and complete details on these plant
production system bargains. Take
a look at these and save your plant some real money as these will be re-sold at
liquidation prices. Immediate availability! TechMachinery has a new section for used SMC composite metals and
plastic moulding equipment to go along with our stamping presses.
We now have in stock three rare 5000 ton
Hydraulic 4-post presses available for immediate sale. Tech machinery
also has 40+ ERIE, HOESCH, Williams and White 4 post hydraulic presses
ranging from 400 tons to 2500 tons immediately available from 2 plant
liquidation sales. Also see the Clearing and Danly complete presslines
and other misc plant production presses for sale below...
5000 Ton Bliss 4 -Post Hydraulic Press with rolling bolsters
5000 ton WILLIAMS
AND WHITE HYDRAULIC 4 POST PRESS WITH ROLLING BOLSTER
5000 metric ton Dieffenbacker hydraulic press with rolling bolsters
and leveling system
-
1600 TON, USI CLEARING
PRESSLINE with (5) PRESSES, Robots and de-Stackers
-
750 Ton Pacific Hydraulic
Straight Side Press in great condition
-
(1)
2500 Ton Used DANLY and (3) 1000 ton PRESSES IN COMPLETE WORKING
PRESS LINE for sale
-
1000 Ton Williams & White Down Acting Hydraulic Housing Type Press
-
Used 500 TON WILLIAMS & WHITE
HYDRAULIC FRAMING PRESS
-
150 TON PHOENIX 4-POST
HYDRAULIC COMPRESSION MOLDING PRESS for sale at liquidation price
-
Used
Williams & White 1500 Ton 4 POST HYDRAULIC PRESS
-
800mm Schmidt & Heinzman
used SMC Machine -new in 1987
-
1200 Ton Press
- Battenfield Hydraulic Compression Molding 4 Post Press
-
Used 2500 ton HPM Hydraulic Press for sale at a wholesale price.
-
Finn & Fram 48" SMC machine with complete in-line mixer and
other options.
Call
Tech Machinery at
(586)
773-8822 or e-mail us for pricing and
complete details on these plant production system bargains.
Additional listings: Newer model Eagle
Model EPT-60 2-1/4" capacity and Adaptive Motion used CNC Tube Benders for
sale. 10'x1/4" Guilfil Hydraulic Shear, 8' 70 Ton 2-axis CNC Guilfil Brake, 10' 240
Ton 8-axis LVD CNC controlled Brake and 10' x1/2" LVD Hydraulic Shear also available.
Click on images to see larger view.

* Williams & White 800ton capacity Compression Molding Press (1976) for sale. Three
identical presses 2803-psi 125" x 50" Platen size, 95" x 45" Bed area
between posts, 60" stroke with 80" max Daylight. 75HP Hydraulic system with hot
oil pumps and full PLC relay controls. (pit mounted press)
 ELMS Press
* 600 ton ELMS 1955 compression Molding Press for sale. Platen 90" x60",
Bed area 60" x 40" with 42" stroke and max 54" daylight. 75hp
hydraulic pump system a 2 hot oil circulating pumps and relay controls on this pit mounted
unit.

*Clearing 1000 ton VertaMold Model H-1000 compression molding press new in 1971. 129"
x 98" Bed area with 96x67" working area between posts. 80" stroke with max
100" daylight. This model has 100HP hydraulic system and hot oil circulating oil
pumps. Updated Allen Bradley PLC2-30 controller and requires pit mounting.

*ERIE 1500 ton compression molding press new in 1977. 3000 psi, 120" x 96
Platen and bed size between posts, 82" stroke, 100" max daylight, with 200 HP
hydraulic system and hot oil pumps. Updated Allen Bradley PLC2-30 controls. Press is pit
mounted
 .
* Verson Model 1500-HD3-108x72-4t compression molding press. 4500psi, 160" x
72" platen and 108" x72" bed size. 80" stroke and 100" max
daylight. Unit has 125HP hydraulic system, hot oil circulating pumps and Allen Bradley
PLC230 controls. (Pit mounted)
*2000
Ton Williams & White 4-Post Down Acting Hydraulic Press* New 1998 60" Stroke
100"Daylite 120"x 96" Bed which can be inspected under power.

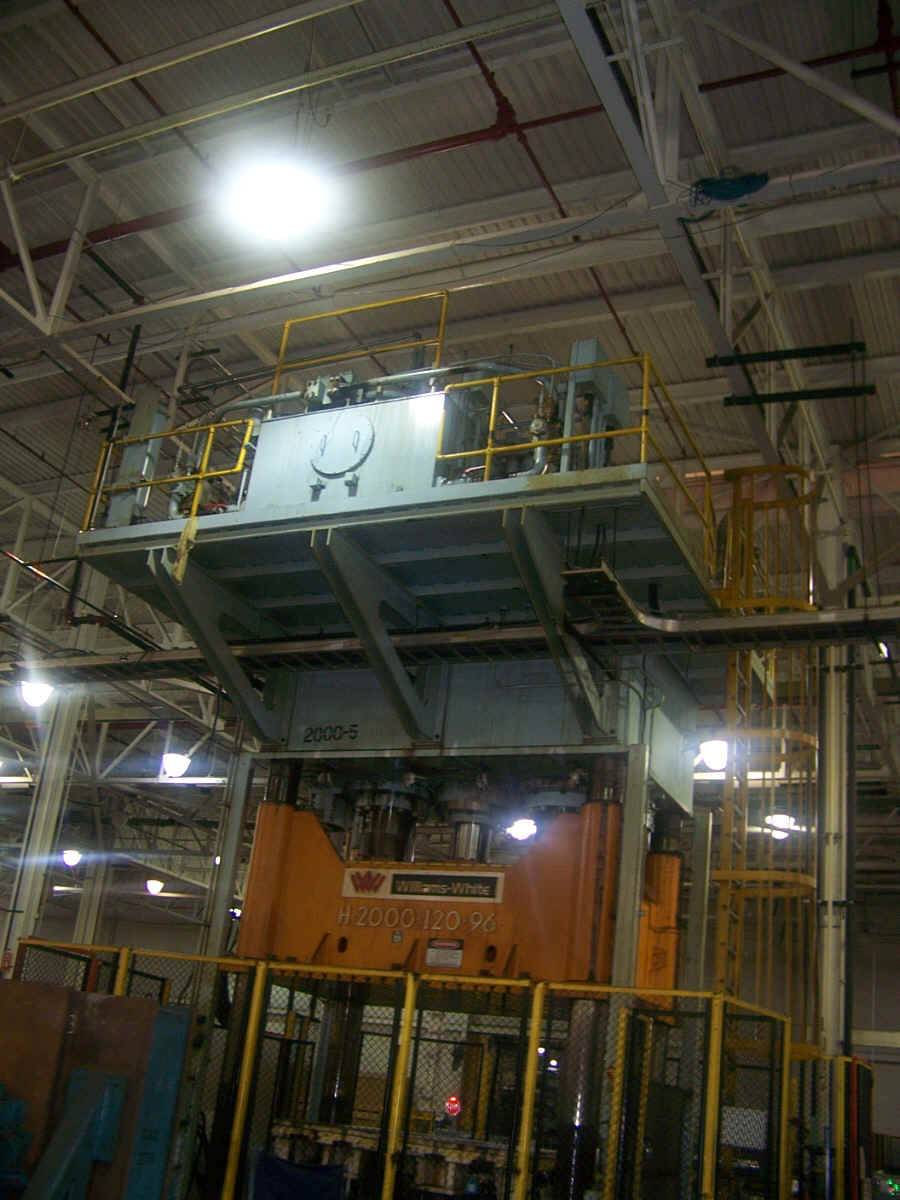

Click to expand these photos of the 2000 ton William & White
down-acting 4-Post Press
For immediate sale.. these
2 used hydraulic stamping presses from a local production plant
Buy/Sell services performed
by Tech Machinery Inc.
Tech Machinery focuses on buying and selling of used metalworking presses,
shears, stamping plant and plastic molding machinery. It is our only business. We
concentrate on, and dedicate our time and resources to satisfy our customer's industrial
machinery needs. Most manufacturing companies have no quick method of disposing of their
machinery. There is no need to assign this task to one of your employees who is already
overloaded with work, and who may not have the information and contacts to receive the
best price when selling used machinery. We are here to help manufacturing companies with
the disposal of your surplus or obsolete equipment.
Call Tech Machinery at
(586) 773-8822 or e-mail us for pricing and
complete details on these plant production system bargains. Take a look at these and save your plant some real money as
these will be re-sold at liquidation prices. Immediate availability! |
