PRESS Type and
Manufacturer |
PRESS
SPECS PICTURES |
|
150 Ton Drake 4-Post Hydraulic
Press New 1973 |
54” Daylite CLICK
HERE
24” Stroke |
|
250 Ton Modern #1R 4-Post Hydraulic Press |
SPECIFICATIONS CLICK
HERE
Model: #1R
Capacity: 250 Ton
Stroke: 18"
Daylight: 36"
Bed Area: 92"LR x 48"FB (Overall)
Bed Area Between Posts: 72-1/2"LR x 30"FB
Bolster Area: 72"LR x 48"FB
Ram Area: 72"LR x 48"FB
Operating Pressure: 2000 PSI
EQUIPPED WITH
7" Thick Drilled & Tapped Bolster Plate
Allen Bradley Panelview 550 Controls
Free Standing Operator Station
75 HP Lincoln "Lincguard" Motor
220-440 Volt / 60 / 3 / 1179 RPM
(4) Individually Mounted Cushions in Base
Floor Standing |
|
300 Ton Weinhomer Hydraulic Spotting Press with Rolling Bolster
|
|
|
400 Ton Pacific Straight Side Hydraulic Press
|
20”Daylite
24” Stroke
54”x120”Bed
|
|
500 Ton Clearing 4-Post Hydraulic Press
|
75”Daylite
24”Stroke
168”x60”Bed |
|
500 Ton Lawton 4-Post Down moving Hydraulic Press |
SPECIFICATIONS: CLICK
HERE
Model: #4- Post
New: 1988
Capacity: 500 Ton
Stroke: 36”
Daylight Opening: 40”
Platen Area: 88”LR x 48”FB
Between Posts: 70”LR x 30”FB
Diameter of posts: 7”
EQUIPPED WITH:
Hydraulic Unit - Pump and motor
Electrics
|
|
500 Ton Sutherland Housing Type Hydraulic Press New 2003 |
54”Daylite
CLICK HERE
22”Stroke
72”x60”Bed |
|

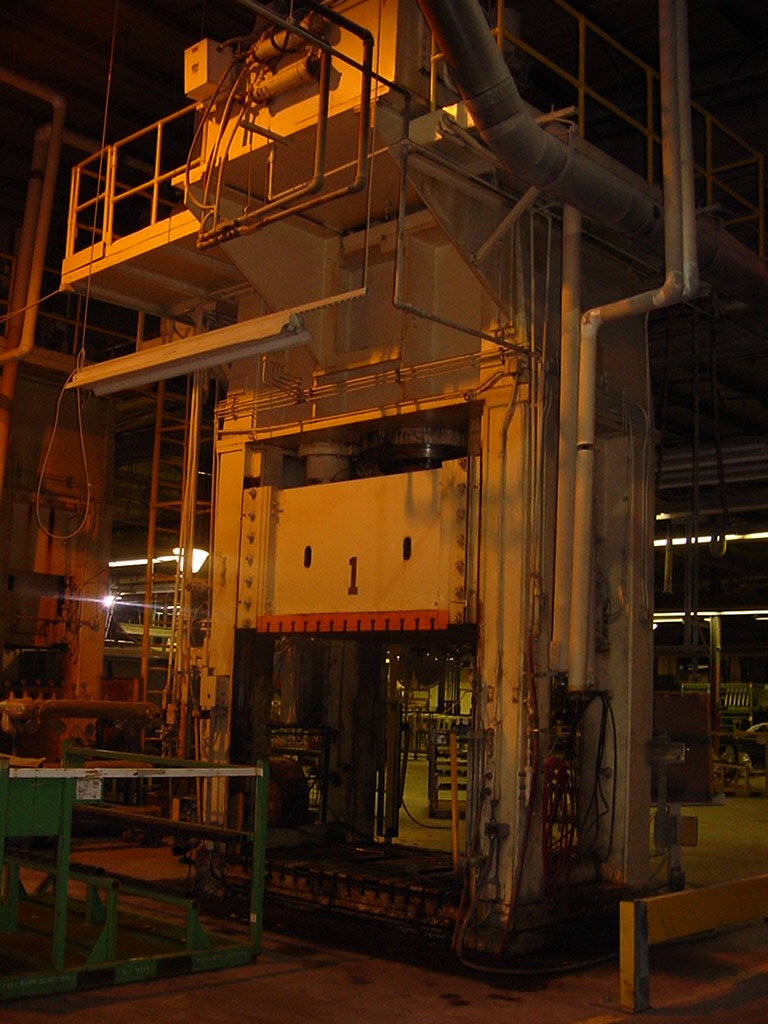

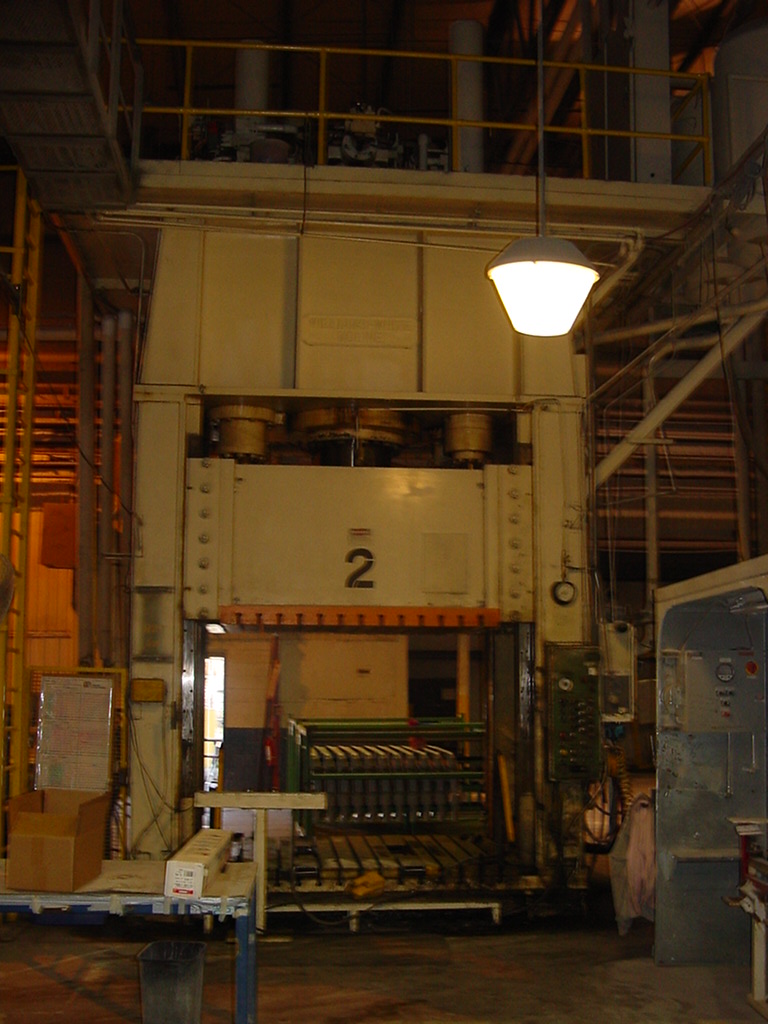

550 Ton Schuler Down Acting Presses (2) |
Capacity: 550 US Tons
CLICK HERE
Stroke: 20" (500mm)
Slide to Bolster: 33.5" (850mm)
Bed and Slide Area: 67" lr x 51" fb (1300 x 1700mm)
Bolster to Floor: 39" (1000mm)
Distance between guideways: 53" (1340mm)
Distance between side locks: 50" (1280mm) |
|
600 Ton Verson #600- Model HD2-120-60T / HR-18-22 Straight Side Hydraulic
Press |
600 ton Verson SS press
CLICK HERE
New in : 1973
Capacity: 600 Ton
Bed Size: 120”LR x 60”FB
Ram Size: 120”LR x 60”FB
Stroke: 45”
Daylight Opening: 76”
Shut Height: 31”
Gross Lifting Capacity: 55 Tons
Fast Advance Speed: 1025 IPM
Pressing Speed: 82 IPM
Fast Return Speed: 895 IPM
(2) Cushions - 127 Ton Capacity Each
Stroke of Cushions: 22”
Oil Requirements: 770 Gallon (press); 370 Gallon (cushions)
Approx Dimensions: 122”FB at feet x 163.5”LR x 320” Overall Height
Height: 232” above floor + 88” below floor
Approx Overall Weight: 182,480 lbs |
|
650 Ton Pacific 4 Post Hydraulic Press New 1995
|
126”Daylite
CLICK HERE
110”Stroke
144”x96”Bed |
|
660 Ton Sutherland Model HD 600 Hydraulic Press |
Model: HD 660 press
CLICK HERE
New: 2005
Stroke: 26"
Shut Height: 24"
Daylight: 50"
Bed Area: 84"LR x 72"FB |
|
750 Ton Pacific #500 OBL-12 Hydraulic Straight Side Press |
Model: #500 OBL-12
CLICK HERE
Year: 1996
Capacity: 750 Ton
Punching Capacity: 500 Ton
Bed Area: 72” x 149”
Window Dimensions: 19” x 50”
Stroke: 24”
Shut Height: 36”
Open Height (Daylight): 60”
Cushion Tonnage (Total): 150 Ton
Cushion Stroke: 9”
Speeds:
Rapid Advance: 360 IPM
Fast Press: 135 IPM
Normal Press (Variable): 5-36 IPM
Fast Return: 198 IPM
Normal Return: 66 IPM
Equipped With
Allen Bradley PanelView 1400E Control
Pedestal Mounted Palm Button Controls
Full Set 25.75” High Machined Filler Blocks for Ram
Dual Cushions
Oil Coolant
Machine Dimensions: 168” L x 119” W x 252” H |
|
800 Ton Lake Erie Hydraulic Press |
SPECIFICATIONS
CLICK HERE
New: 1950's
Capacity: 800 Ton
Stroke: 48”
Open: 71”
Bed Size: 96” x 161”
Between Posts: 96” x 69”
Floor Standing
Hydraulics - Side to Top Mounted |
|
880 Ton Sutherland Model HD 800 Hydraulic Press |
SPECIFICATIONS
CLICK HERE
Model: HD 880 Hydraulic Press
New: 2005
Stroke: 26"
Shut Height: 24"
Daylight: 50"
Bed Area: 84"LR x 72"FB
EQUIPPED WITH
6" T slotted bolster
AB Panel View 1000 Touch Screen |
|
900 Hepburn Housing Type Hydraulic
Press |
84”Daylite
CLICK HERE
60”Stroke
72”x96”Bed |
|
1000 Williams&White Housing Type
Hydraulic Press New 1987 |
72”Daylite
CLICK HERE
60”Stroke
60”x96”Bed |
|
1000 Ton Pacific Straight Side
Hydraulic Press New 1991 |
84”Daylite
60”Stroke
240”x54” Bed |
|
1000 Ton HPM 4-Post Hydraulic
Press Floor Standing |
36” Daylite
CLICK HERE
24” Stroke
48”x96” Bed |
|
1000 Ton St. Lawrence 4-Post Down Acting Hydraulic Press |
SPECIFICATIONS
CLICK HERE
Capacity: 1000 Tons
Stroke: 30"
Daylight: 56" (to be verified)
Bed and Slide: 110" lr x 72" fb
Distance Between Posts: 90" lr x 50" fb
Cylinder Bore: 16"
Cylinder Rod Diameter: (4) 12" each
Equipped With
6" T-slotted & tapped lower platen
T-slotted Ram
8" diamter posts
Top - Rear mounted hydraulic unit
50HP - 1200 RPM main motor
Die Cushion - 10" stroke
Electrics and controls
|
|
1350 Williams & White
Hydraulic Press New 1995 |
80”Daylite
CLICK HERE
24”Stroke
120”x72”Bed
|
|
1500 Ton Williams & White
Housing Type Hydraulic Press |
72”Daylite
CLICK HERE
60”Stroke
120”x84”Bed
|
|
1500 Ton Verson #HD3-196-196-4T Hydraulic Press |
SPECIFICATIONS
CLICK HERE
Model: #HD3-196-196-4T
New: 1971
Tonnage: 1500
Stroke: 60”
Shut Height: 36”
Bed Area: 196”LR x 196”FB
Distance Between Housings: 122”LR x 150”FB |
|
2000 Ton Erie Hydraulic Press
Cushions |
60”Daylite
22”Stroke
60”x60” Bed |
|
2000 Ton Williams & White
Hydraulic Press New 1999 |
100”Daylite
CLICK HERE
80”Stroke
96”x180” Platen |
|
2200 Ton Williams & White
Hydraulic Press New 1999 |
48”Daylite
CLICK HERE
18”Stroke
48”x48”Bed
|
|
4000 Ton Williams & White
4-Post Hydraulic Press |
100”Daylite CLICK
HERE
80”
Stroke
96”x180” Bed |
|
4000 Ton Dieffenbacher #PHP 4-Post Downacting Hydraulic Press |
SPECIFICATIONS
CLICK HERE
Model: #PHP
Year: 1980
Capacity: 4000
Stroke: 102.36
Daylight Opening: 142” max
Bed Size: 148”LR x 110”FB
Ram Size: 148”LR x 110”FB
Operating Speed: Advance: 300 mm per / second
Return: 300 mm / per second
EQUIPPED WITH
Ram & Bolster - T-Slotted
Weight of Press: 300 Tons
|
|
5000 Ton Bliss Hydraulic Press |
60”
Daylite CLICK
HERE
48”Stroke
84”x204”Rolling Bolster |
|
5500 Ton Dieffenbacher
4-Post New Hydraulic Press new in
1990 |
126”Daylite
CLICK HERE
82”Stroke
96”x160”Bed
|
|
5000 Ton Williams & White 4-Post Hydraulic Press NEW 2001 |
112"Daylite
CLICK HERE
72"Stroke
200"x96"Bed |
|
|
|
