WE ARE PLEASED TO OFFER THE FOLLOWING PRESS FOR YOUR CONSIDERATION:

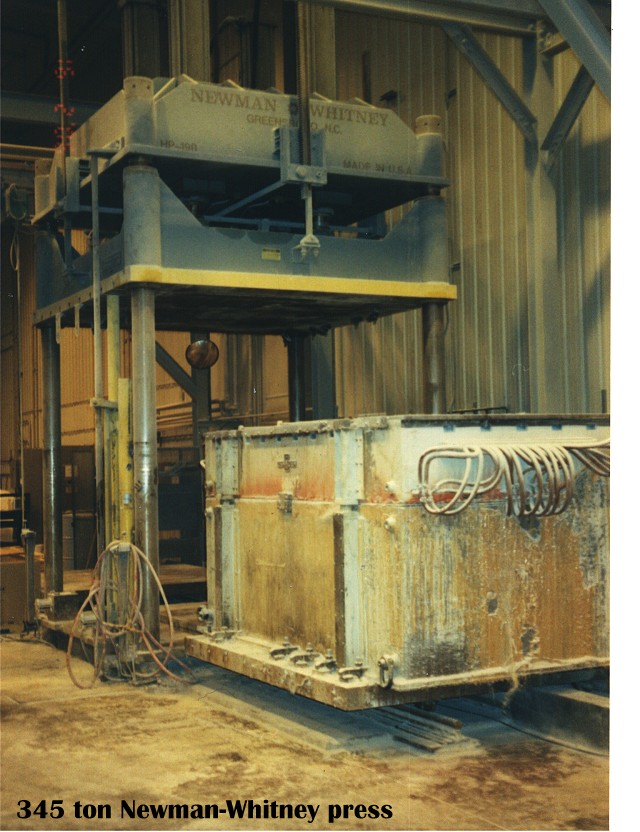

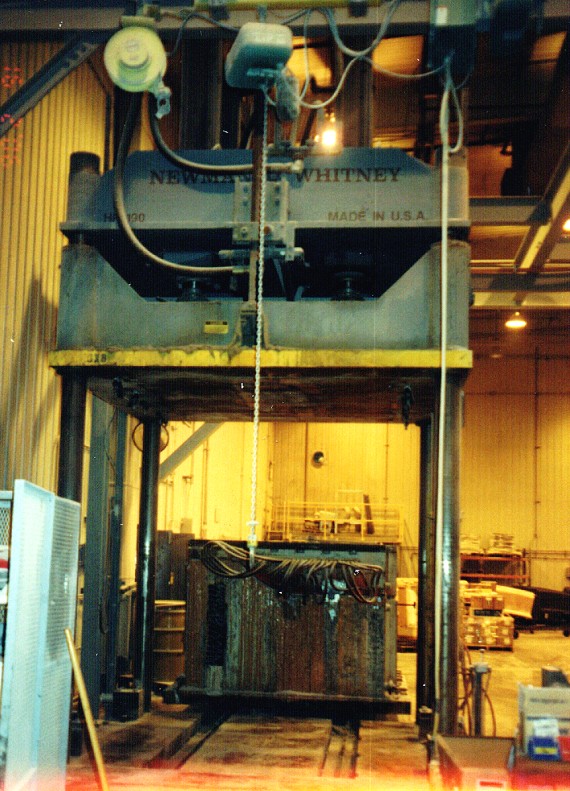

Used Newman & Whitney Housing type HYDRAULIC 345 ton Spotting PRESS for sale.

TONNAGE: 345 ton Newman-Whitney press with all controls in working condition. Installed new in 1994.

Utility sized Hydraulic stamping press in working condition ready for retrofitting into most any production line as a utility hydraulic press. These came from a compression moulding plant and are all in working order. All press controls and safety equipment included, and we can arrange rigging and transport to USA and Overseas locations...

Specifications on this 994 345 ton Newman-Whitney press:

STROKE: 72" Max Daylite 110"

Platen dimensions 96" x 96"

Approx. Closing Speed 140 IPM

Approx Opening Speed 140 IPM

UP-Tonnage 50 tons

Upper Platen operated by four 10"
diameter Cylinders

Platens have T-slots for Tool
mountings 1" wide w/12" centers
Machined on X-axis

Strained Rod Design with each
corner rod 7" in diameter. Manual
Positive Stop located on left rear side of
press when press is in full operating Position

Seperate Hydraulic unit -Seperate pressure adj
for desired tonnage. Lower platne mounted on
roller bearings for easy tool change. Includes
Allen Bradley SLC500 Control.

Additional Lower platen supplied by Air Wench and
press has 3 metal safety side guard rails.

Call (586) 773-8822 for Pricing

Additional K.R. Wilson and Erie Presses are available for purchase from Tech Machinery Inc. Please call or fill in information/quote request form below.

CONTACT SELLER

Please fill in below form info and submit only once

Tech Machinery is a Industrial Equipment broker

Tech Machinery Sales Inc. specializes in high quality, late model industrial machinery designed for production plants. If your looking to save some money by purchasing used hydraulic or mechanical punch presses, CNC machining centers, milling machines, plastic moulding systems to complete metal production lines we are ready to serve you as a full service broker. We also purchase or broker used plant equipment and offer a variety of services from specific machinery searches to physical inspections and rigging with shipping worldwide.

Tech Machinery Sales has this used 650 ton Pacific 4 post hydraulic Press for sale at a liquidation price.

: 650 Ton Pacific 4-Post Hydraulic Press for sale. New in 1994.... Model 650 CX 12/126

Bed & Ram Size: 144" rl x 126"fb

Stroke: 86" .Daylight: 110"......... Adjustable Tonnage via PLC operator interface.

Max open above Bolster: 114" and Min open is 28" above bolster

Equipped with Dual Rolling Bolsters front to back 4" thick Tee Slotted Bolster Top is 11" above floor

Base Sets 39" below floor level and has Max Height above floor = 275 3/8" or 22' 9" withc Approx Machine weight 300,000 lbs. Condition is very Good and ready for plant production

Click images to enlarge

Below you'll find some newly purchased presses available for immediate delivery.

1. Used Williams & White 1500 Ton 4 POST HYDRAULIC PRESS

2. 800mm Schmidt & Heinzman used SMC Machine -new in 1987

3. Finn & Fram 48" SMC machine with complete in-line mixer and other options.

4. Used- Erie 1500 and 600 ton Hydraulic compression molding presses

5. 1200 Ton Press - Battenfield Hydraulic Compression Molding 4 Post Press

6. Used 2500 ton HPM Hydraulic Press for sale at a wholesale price.

7. Bliss 5000 ton 4 Post Hydraulic metal stamping press at liquidation price.

Tech Machinery Sales has this used 650 ton Pacific 4 post hydraulic Press for sale at a liquidation price.

: 650 Ton Pacific 4-Post Hydraulic Press for sale. New in 1994.... Model 650 CX 12/126

Bed & Ram Size: 144" rl x 126"fb

Stroke: 86" .Daylight: 110"......... Adjustable Tonnage via PLC operator interface.

Max open above Bolster: 114" and Min open is 28" above bolster

Equipped with Dual Rolling Bolsters front to back 4" thick Tee Slotted Bolster Top is 11" above floor

Base Sets 39" below floor level and has Max Height above floor = 275 3/8" or 22' 9" withc Approx Machine weight 300,000 lbs. Condition is very Good and ready for plant production

Click images to enlarge

Additional listings: Newer model Eagle Model EPT-60 2-1/4" capacity and Adaptive Motion used CNC Tube Benders for sale. 10'x1/4" Guilfil Hydraulic Shear, 8' 70 Ton 2-axis CNC Guilfil Brake, 10' 240 Ton 8-axis LVD CNC controlled Brake and 10' x1/2" LVD Hydraulic Shear also available.

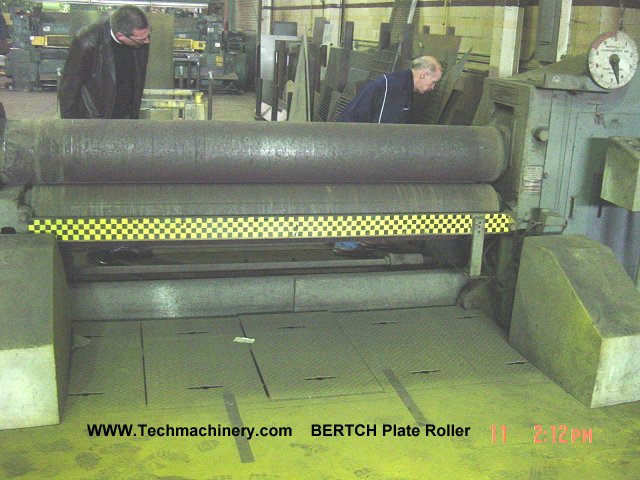

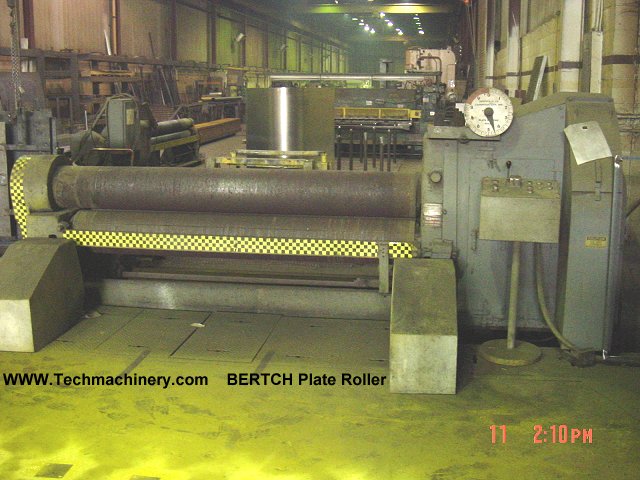

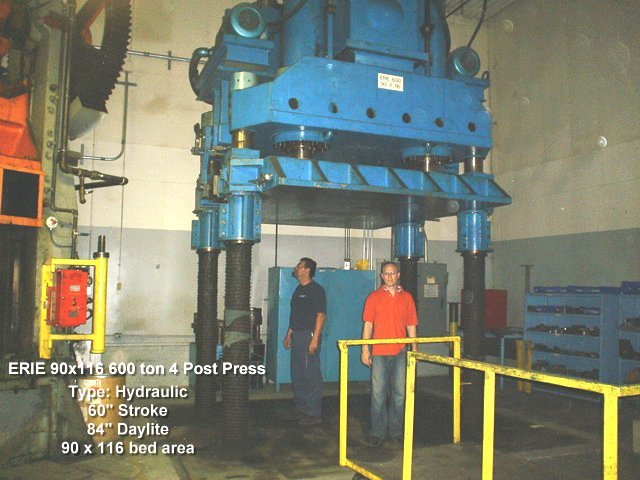

For Sale ERIE 4 poster 600 Hydraulic press & Bertch Plate Roller

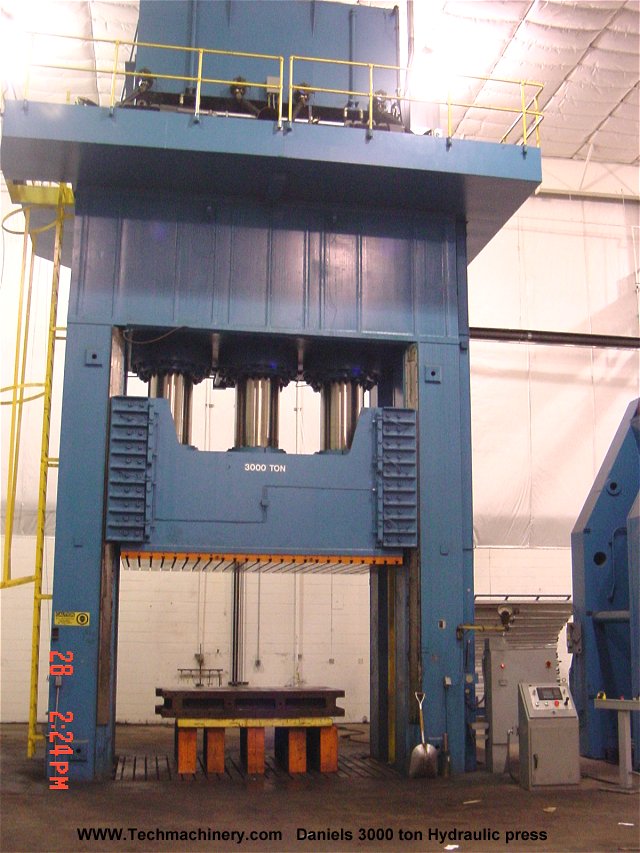

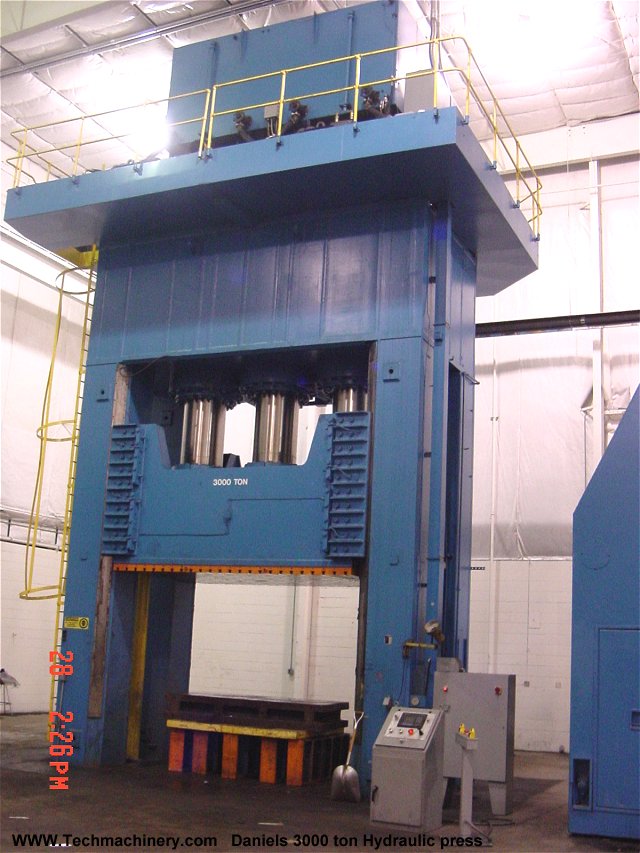

Call for additional photos and specs on this 3000 ton DANIELs Hydraulic Press

TM wants your surplus equipment. We are always looking for surplus equipment to purchase. Click here to E-Mail us your surplus equipment list or call and fax us as we are alway purchasing used industrial product plant equipment for resale to domestic and overseas clients. Below you'll find some newly purchased presses available for immediate delivery.

1.Specsheet on this 1000 ton ERIE hydraulic 4 post press ..click here!

2. Used ERIE 4 POST HYDRAULIC 900 ton PRESS for sale.

3. Used ERIE 4 POST HYDRAULIC 176 ton PRESS for sale.

4. K.R. WILSON 1200 Ton 4 POST HYDRAULIC PRESS for sale

5. Used Williams & White 1500 Ton 4 POST HYDRAULIC PRESS

6. Used 850 ton Williams & White 4 post hydraulic press with options

7. Used 300 Ton Heidel Hydraulic Spotting Press

8. USED Lodge and Shipley Model 0806 Mechanical Power Squaring Shear

9. Eaton -Leonard VB-75 CNC controlled Tube Bender

10. Used 1965 Cincinnatti 22Ft Press Brake model#12

11. USED DELTA 40,000 lb x60" uncoiler and Coil Car for sale

12. Used TRUMPF CNC Punch Press Model -TC260A for sale.

Misc used machinery: 900 Ton Hepburn Hydraulic Press and a 245 Ton French Oil Up-Acting Hydraulic Press

Used Lodge & Shapely 6' x 1/2" Shear

Newest listings from Tech Machinery Inc. include the below used 300ton Dake 4-Post Hydraulic press. This one has a 48" stroke, 82" Day Light, and a 60" x 112" bed size. Click images for larger view.

Dake 300 ton 4-post hydraulic press -above

Ready for relocation is this 800 ton Dominion Hydraulic Press with 24" stroke, 62" day light, 60 x 80" bed size.

Call Tech Machinery at (586) 773-8822 or e-mail us for pricing and complete details on these plant production system bargains. Take a look at these and save your plant some real money as these will be re-sold at liquidation prices. Immediate availability!

Domestic and overseas shipping can be arranged for all the equipment we list for sale at this site. Browse through our equipment Listings or call Sales Dept for complete details, additional photos and pricing on all these production machines. We now have used composite and rubber molding systems and presses available for immediate delivery.

Rubber Compound Molding Presses

Just on the market: 1250 Ton KTM-NORAMEX Rubber molding press... click here to see the full details on this production molding press

Click on photos to see a larger view of these sample manufacturing machines. Our locator services include sourcing presses, plastic and PVC moulding machines, horizontal and verticle milling centers..... right into CNC machining equipment. We can arrange shipping and rigging worldwide.
